Three Phase Variable Speed Industrial Canopy Fan Controller
4KW
Kitchen Canopy's Three Phase Variable Speed Fan Controller
Description:

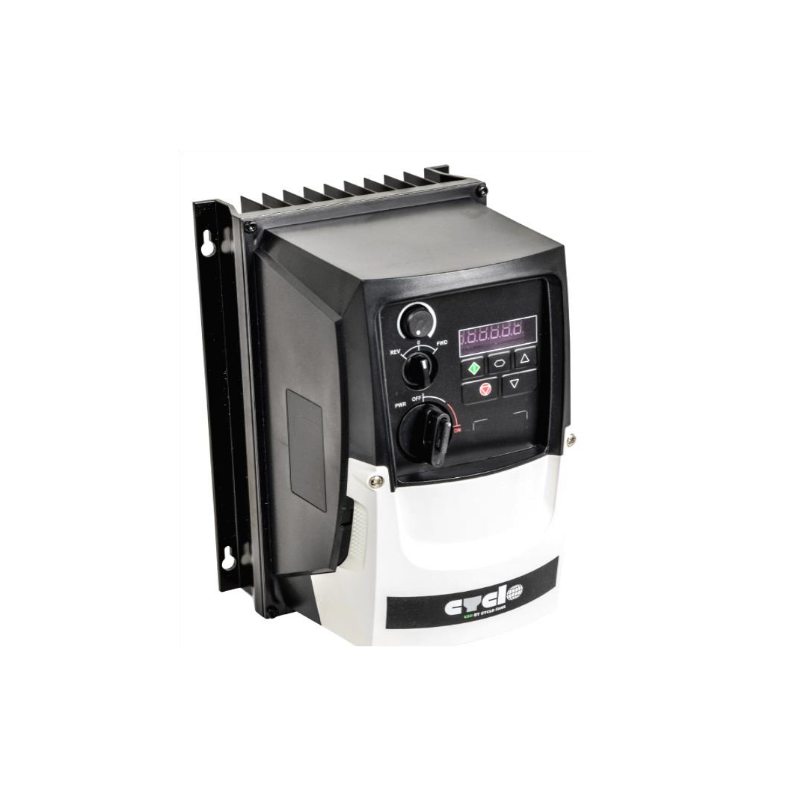

Command your most powerful machinery with the CVSD-400-33, an elite variable speed drive engineered for maximum performance in heavy industrial applications.
Delivering an immense 4.0 kW of power, this controller is built to manage the largest three-phase motors on a 380-415V supply, providing unparalleled control over heavy-duty fans, pumps, and industrial processing equipment.
The CVSD-400-33 is encased in a robust IP66-rated enclosure, making it completely impervious to dust and resistant to high-pressure water jets.
This ensures exceptional durability and reliability, even in the most extreme environmental conditions found in heavy industry, mining, and large-scale manufacturing.
This VSD provides a formidable 9.5 Amps of output current, ensuring stable and efficient operation for the most demanding motor loads.
The integrated switch and potentiometer offer direct, user-friendly control, allowing for precise speed adjustments to maximize energy efficiency, reduce mechanical strain, and control the operational environment.
When your operation requires the highest level of power and control, the CVSD-400-33 is the definitive choice.
Technical Specifications
- Model: CVSD-400-33
- Motor Output Rating: 4.0 kW
- Input: Three Phase, 380 - 415V
- Output Current: 9.5 Amps
- Enclosure Rating: IP66 (Dust-tight and protected against powerful water jets)
- Control: Integrated switch with potentiometer
- Max Cable Length: 100 m
- Dimensions: 257mm (H) x 188mm (W) x 187mm (D)
- Weight: 4.1 kg
