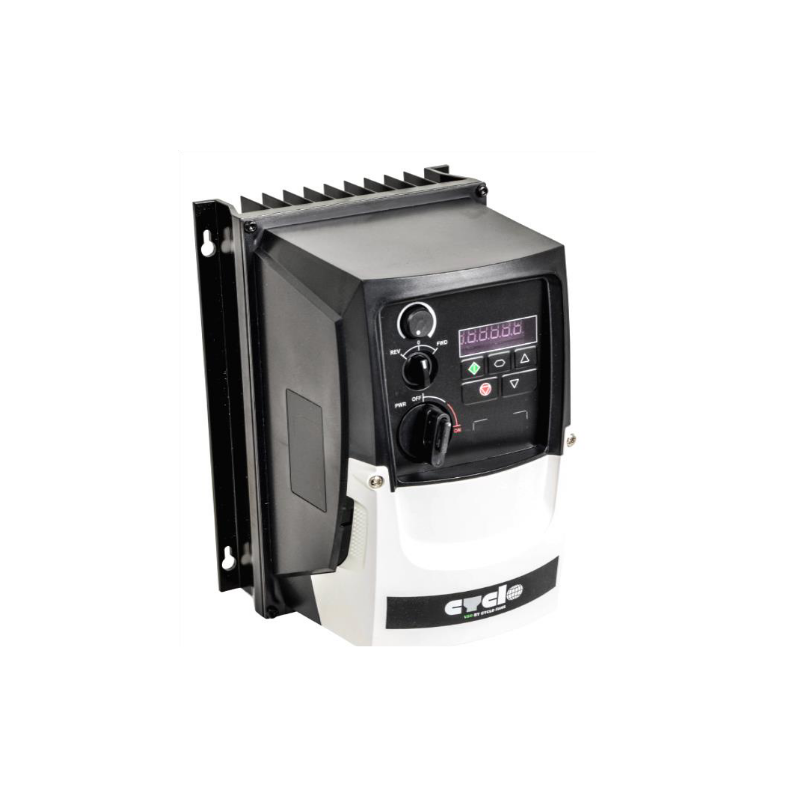

Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66
search
  • Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66
  • Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66
Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66
2.2KW
Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66
Description:
The CVSD-220-33 is the ultimate solution for high-power motor control, delivering a commanding 2.2 kW output for your most demanding three-phase applications.
Operating on a 380-415V three-phase supply, this variable speed drive is engineered to manage large industrial motors, heavy-duty fans, and complex machinery with exceptional precision and reliability.
Encased in a formidable IP66-rated enclosure, the CVSD-220-33 is built to perform in the harshest conditions.
It offers complete protection against dust ingress and can withstand powerful, high-pressure water jets, ensuring unwavering performance in industrial wash-down areas, agricultural settings, and outdoor installations.
This controller provides a robust 5.8 Amps of output current, ensuring smooth, stable, and efficient motor operation under heavy loads.
The intuitive, front-mounted potentiometer and switch allow for easy manual speed adjustments, empowering you to optimize energy consumption, reduce mechanical wear, and control operational noise.
With a 100-meter maximum motor cable length, it offers excellent flexibility for large and complex site layouts.
For maximum power, control, and durability in a three-phase system, the CVSD-220-33 is the superior choice.
Technical Specifications
  • Model: CVSD-220-33
  • Motor Output Rating: 2.2 kW
  • Input: Three Phase, 380 - 415V
  • Output Current: 5.8 Amps
  • Enclosure Rating: IP66 (Dust-tight and protected against powerful water jets)
  • Control: Integrated switch with potentiometer
  • Max Cable Length: 100 m
  • Dimensions: 257mm (H) x 188mm (W) x 187mm (D)
  • Weight: 4.1 kg

Cyclo CVSD-220-33 - Three Phase Variable Speed Fan Controller - IP66

24728

RRP

$1,433.25 EX GST
Save 3.02%

OUR PRICE

$1,390.00
EX GST Non stock item- Lead times may apply
