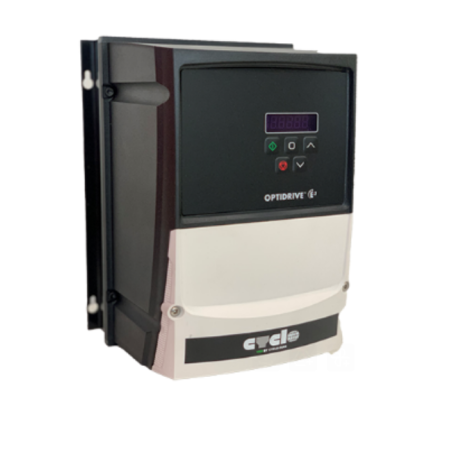

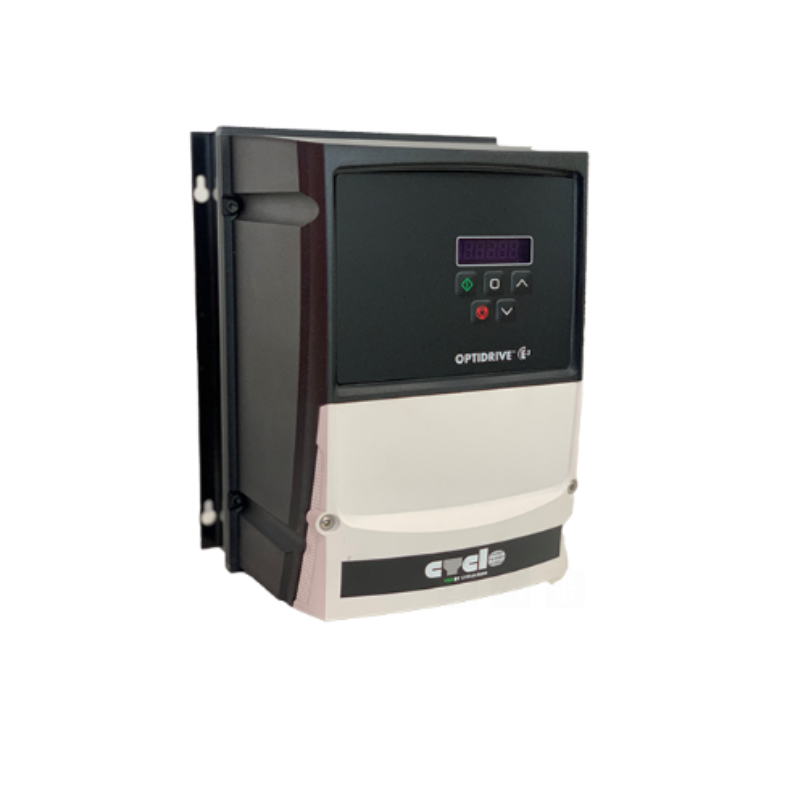

Cyclo CVSD-150-13 (NS) - Non-Switched Phase Converting Variable Fan Motor Speed Controller
Cyclo CVSD-150-13 (NS) - Non-Switched Phase Converting Variable Fan Motor Speed Controller
Description:
The CVSD-150-13(NS) is a top-tier variable speed drive engineered for high-power applications within fully automated environments.
It expertly converts a single-phase 200-240V input into a robust, variable three-phase output, enabling the use of 1.5 kW three-phase motors on a single-phase power supply.
As a non-switched (NS) model, this controller is designed without any onboard manual controls.
It is built specifically for seamless integration with a Building Management System (BMS), PLC, or other centralized remote control panels, allowing for precise, automated management of motor speed and function.
Housed in a formidable IP66-rated enclosure, the CVSD-150-13(NS) is completely protected from dust and high-pressure water, ensuring ultimate reliability in demanding industrial settings.
It delivers a powerful 7 Amp output current, making it the ideal choice for integrating heavy-duty fans, pumps, and machinery into a sophisticated, centrally-managed system.
Key Features:
- High-Power Phase Conversion: Runs 1.5 kW three-phase motors on a single-phase supply.
- Non-Switched (NS) for System Integration: Designed for remote operation via BMS or external controllers.
- IP66 Rated Enclosure: Maximum protection for harsh, wet, and dusty environments.
- Automated Control: Perfect for sophisticated, energy-efficient building and industrial automation.
- Powerful Output: Delivers a steady 7 Amp, three-phase output for demanding loads.
Technical Data:
- Model: CVSD-150-13(NS)
- Function: Non-Switched, Single-Phase to Three-Phase Converter
- Motor Output Rating: 1.5 kW
- Input: 1-Phase, 200-240V
- Output: 3-Phase, 0-Supply Voltage
- Output Current: 7 Amps
- Enclosure: IP66
