Cyclo CVSD-075-11 (NS) - Non-Switched Phase Converting Variable Motor Speed Controller
CVSD-075-13(NS): IP66 Phase-Converting Variable Fan Motor Speed Controller
Description:

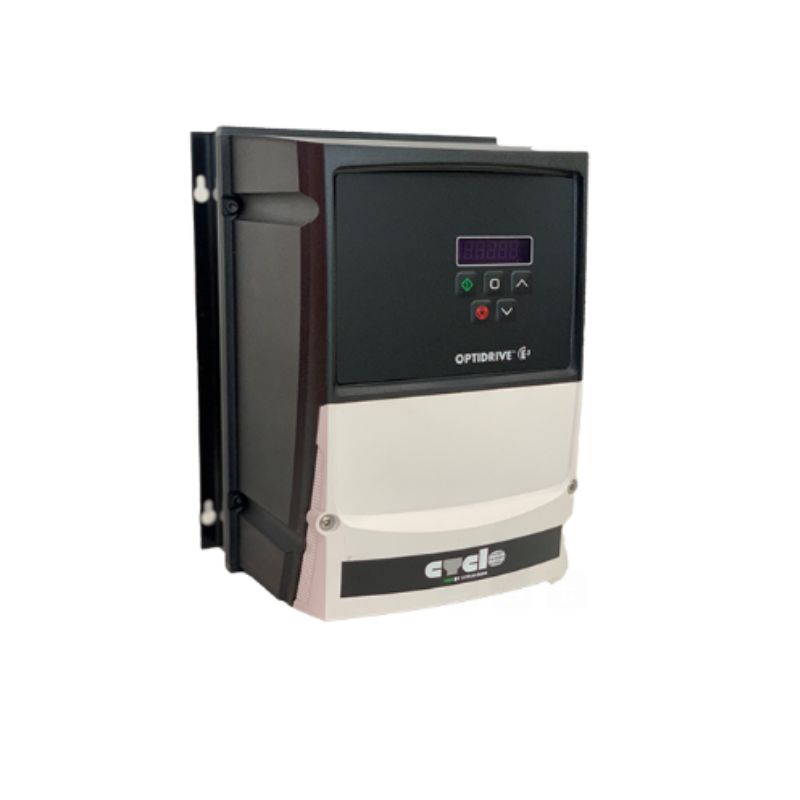

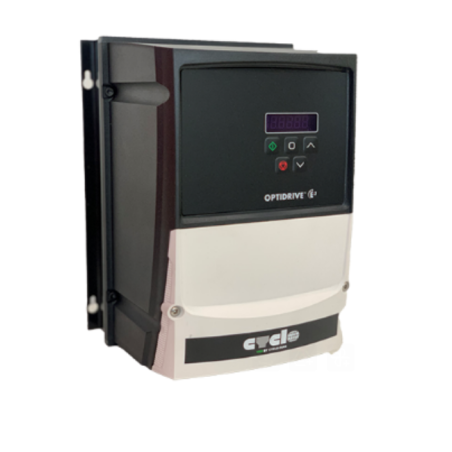

Cyclo CVSD-075-11 (NS) - Non-Switched Phase Converting Variable Fan Motor Speed Controller
The Cyclo VSD CVSD-075-13(NS) is a specialized variable speed drive designed for seamless integration into automated control systems.
This powerful controller efficiently converts a standard single-phase 240V input into a variable three-phase 240V output, allowing you to run three-phase motors in locations where only single-phase power is available.
As a non-switched (NS) model, this unit is supplied without an onboard potentiometer or switch, making it the perfect solution for connection to a Building Management System (BMS) or any external control interface.
This allows for centralized and automated command over your motor speeds, enhancing system efficiency and responsiveness.
Housed in a robust IP66-rated enclosure, the CVSD-075-13(NS) is fully protected from dust and powerful water jets, ensuring maximum reliability in harsh industrial and commercial environments.
It delivers a 0.75 kW output, providing precise and dependable control for fans, pumps, and other machinery within a fully integrated setup.
Key Features:
- Single to Three-Phase Conversion: Powers three-phase motors from a single-phase supply.
- Non-Switched (NS) Design: Intended for remote operation via BMS or external controls.
- IP66 Rated Enclosure: Guarantees protection against dust and high-pressure water.
- System Integration: Ideal for automated and centrally controlled applications.
- Reliable Power: Provides a stable 0.75 kW output for consistent motor performance.
Technical Data: CVSD-075-13(NS)
Function:
- Model Type: Variable Speed Drive (VSD) / Controller
- Primary Function: Converts single-phase input to three-phase output.
- Control: Non-Switched (NS) - Designed for remote control via BMS or external inputs (no onboard switch/potentiometer).
Input Ratings:
- Supply Voltage: 200 - 240V
- Input Phases: 1 (Single Phase)
- Supply Current (Continuous): 9.3 Amps
- Recommended Fuse/MCB (Type B): 16 Amps
Output Ratings:
- Motor Output Rating: 0.75 kW
- Output Voltage: 0 – Supply Voltage (Variable)
- Output Phases: 3 (Three Phase)
- Output Current: 7 Amps
Physical Specifications:
- Enclosure Rating: IP66 (Dust-tight and protected against powerful water jets).
- Dimensions (H x W x D): 232 mm x 161 mm x 179 mm
- Weight: 3.1 Kg
