CVSD-075-33 - Extraction Fan Speed Controller

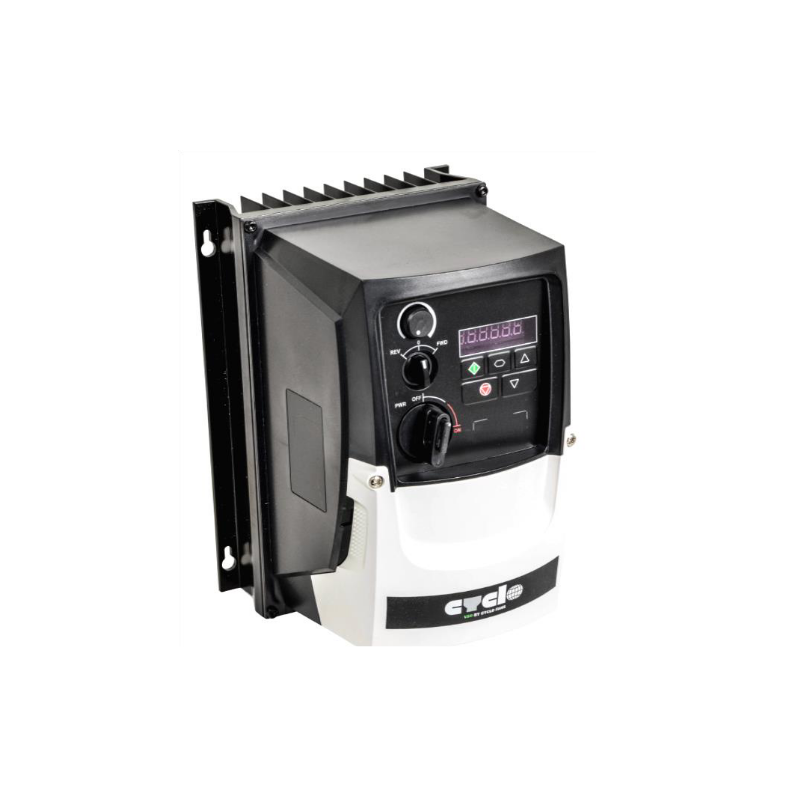

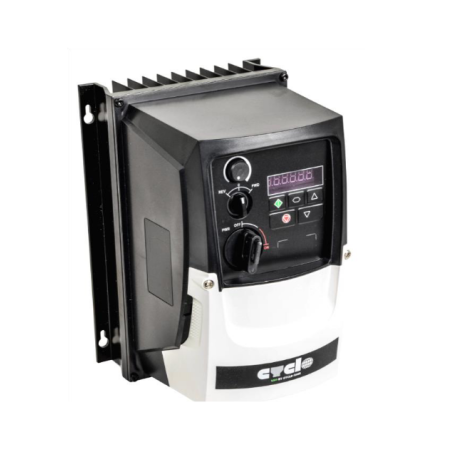

CVSD-075-33: Robust IP66 Speed Controller for Three-Phase Motors
Description:
Engineered for industrial-grade applications, the Cyclo VSD CVSD-075-33 is a powerful and precise variable speed controller for three-phase motors.
Designed to operate on a 380-415V three-phase supply, it delivers a consistent 0.75 kW output, giving you authoritative control over your ventilation, extraction, and other motor-driven systems.
The CVSD-075-33 is housed in a rugged IP66-rated enclosure, guaranteeing it is completely sealed against dust and can withstand high-pressure water jets from any direction.
This makes it the ultimate solution for the most demanding environments, including heavy industry, food processing plants, and outdoor installations where durability is non-negotiable.
With a continuous output current of 2.2 Amps, this controller ensures smooth and stable motor performance.
The intuitive, built-in potentiometer allows for fine-tuned speed adjustments, helping you optimize airflow, reduce noise, and achieve significant energy savings.
Its generous 100-meter maximum motor cable length provides outstanding installation flexibility for large or complex sites.
Compact yet powerful, the CVSD-075-33 is the professional's choice for reliable, high-performance three-phase motor control.
Technical Specifications
- Model: CVSD-075-33
- Motor Output Rating: 0.75 kW
- Input: Three Phase, 380 - 415V
- Output Current: 2.2 Amps
- Enclosure Rating: IP66 (Dust-tight and protected against powerful water jets)
- Control: Integrated switch with potentiometer
- Max Cable Length: 100 m
- Dimensions: 232mm (H) x 161mm (W) x 179mm (D)
- Weight: 3.1 kg
