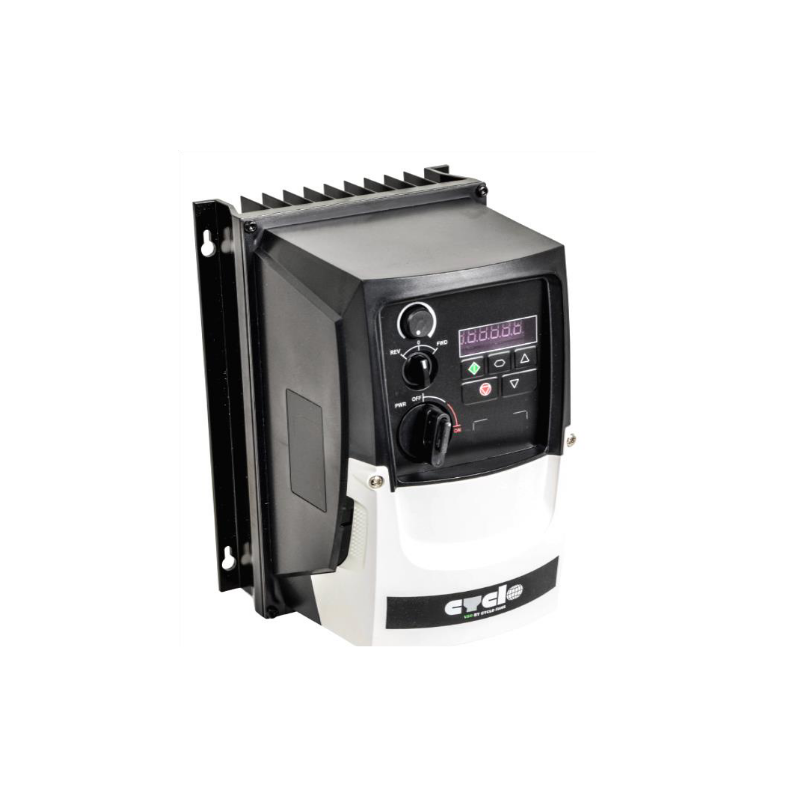

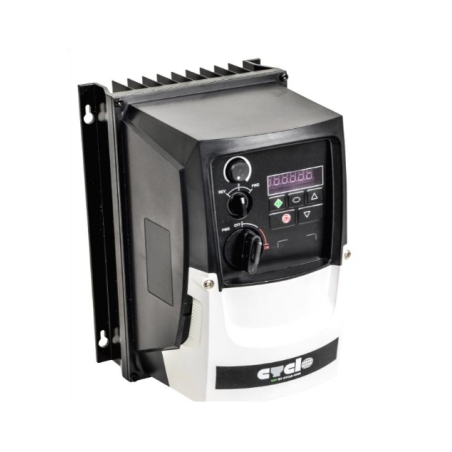

Cyclo CVSD-150-13 - Phase Converting Variable Fan Motor Speed Controller
Cyclo CVSD-150-13 - Phase Converting Variable Fan Motor Speed Controller
Single-Phase to Three-Phase VSD (1.5 kW)
The CVSD-150-13 is a high-performance Variable Speed Drive designed to bridge the gap between single-phase power and three-phase motors.
This powerful controller takes a standard 200-240V single-phase input and expertly converts it to a variable three-phase output, allowing you to run heavy-duty three-phase machinery in locations without a native three-phase supply.
With a robust 1.5 kW motor output rating, the CVSD-150-13 is built for demanding applications that require significant power and precise control.
Its durable IP66-rated enclosure ensures it is completely impervious to dust and can withstand powerful water jets, making it a reliable choice for challenging industrial, agricultural, or commercial environments.
Technical Specifications
- Model: CVSD-150-13
- Function: Single-Phase Input to Three-Phase Output Converter
- Motor Output Rating: 1.5 kW
- Input: Single Phase, 200 - 240V
- Output: Three Phase, 0 - Supply Voltage
- Output Current: 7 Amps
- Enclosure Rating: IP66 (Dust-tight and protected against powerful water jets)
- Control: Integrated switch with potentiometer
- Max Cable Length: 100 m
- Dimensions: 257mm (H) x 188mm (W) x 187mm (D)
- Weight: 4.1 kg
