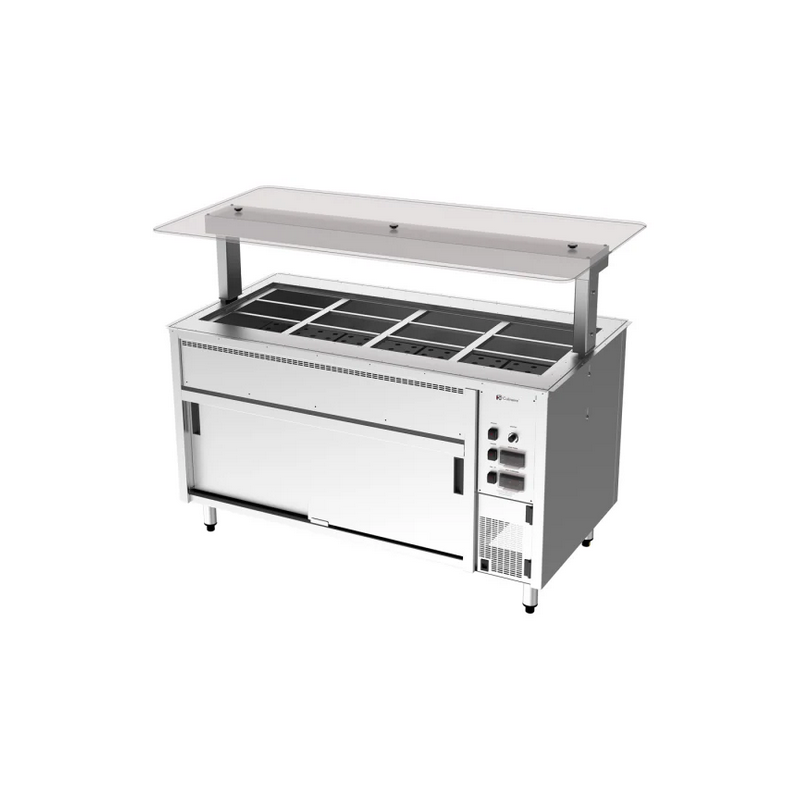

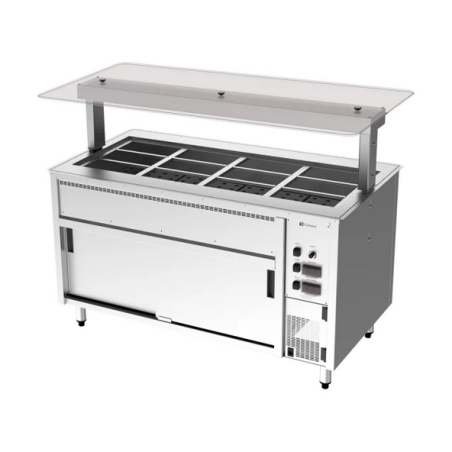

Culinaire Under Bench Counter Line Bain Marie Hot Cupboard With Flat Glass Gantry - Stainless Steel
Culinaire CH.BMHC.U.GSF.4 Bain Marie Hot Cupboards 4 Bay, Under Bench
About this product
The Culinaire® Under Bench Counter Line Bain Marie Hot Cupboard has a high powered heavy duty Bain Marie that is designed to hold hot food at the optimum temperature in GN pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The hot cupboard features a fan forced heating system, which offers energy saving efficiency, faster heat-up times and even heat distribution.
Ready for connection to hot water inlet and waste with all valves supplied and fitted. The visual aspect of the unit is enhanced by the use of 10mm toughened glass on the gantry. Options: Left hand controls, radius well.
Flat glass gantry. It measures 1543 x 830 x 1260 mm (W x D x H) and is rated at 5.7kW.
Key Benefits
- Hard-wearing stainless steel that's easy to keep clean
- Insulated construction holds temperature and saves energy
- Energy-efficient operation
- Backed by a 12-month parts and labour warranty
Key Features
- This unit is designed to be mounted under a custom made bench top of your choice (manufactured & fi tted by others)
- Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
- Temperature regulation via digital control, designed to hold product between 65°C - 90°C.
- Air insulated, double skinned tank for energy efficient heating
- Hot cupboard equioped with a fan forced heating system
- Independent controlls for baine marie, hot cupboard, and gantry
- Gantry fi tted with 10mm thick toughened glass and overhead Quartz IR heat lamps with adjustable temperature
- Gantry height adjustable at installation for bench top thickness
- Robust 304 grade stainless steel construction
- Manual fi ll and manual empty, valve operated waste
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BMHC.U.GSF.4 |
| Dimensions (W x D x H mm) | 1543 x 830 x 1260 |
| Power | 5.7kW |
| Electrical | 3Ø + N + E |
| Range | Culinaire Self Serve Food Displays Bain Marie Hot Cupboards |
| Description | 4 Bay, Under Bench |
| Electrical Connection | 3Ø+N+E 400VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Modules | 4 |
| Placement | Freestanding |
| Warranty | 12-month parts and labour warranty |
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pans are recessed to minimise water condensation on surrounding bench top.
Made to Order.
MODEL: CH.BMHC.U.GSF.4
