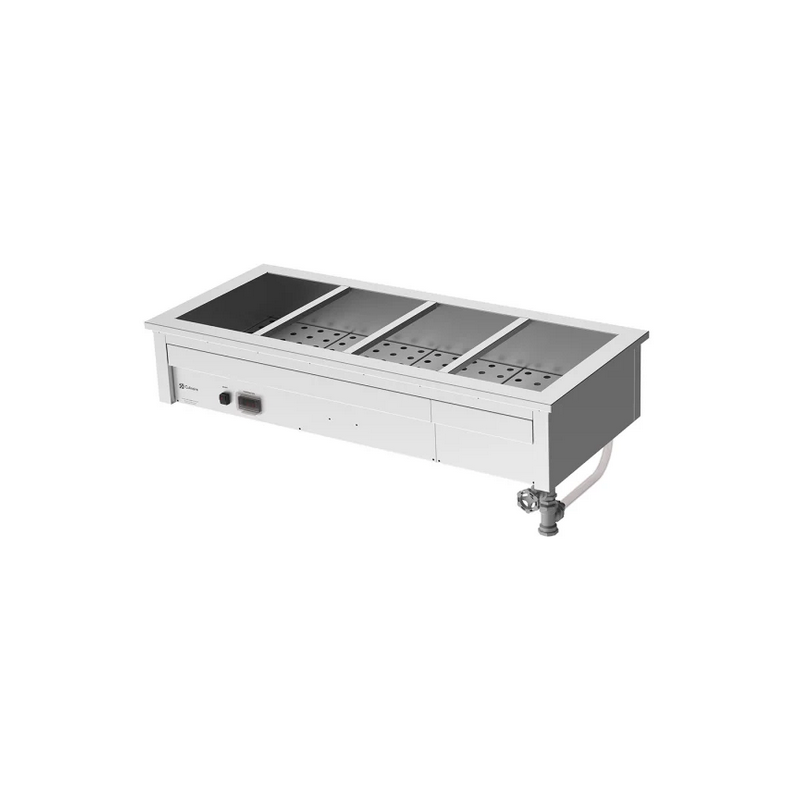

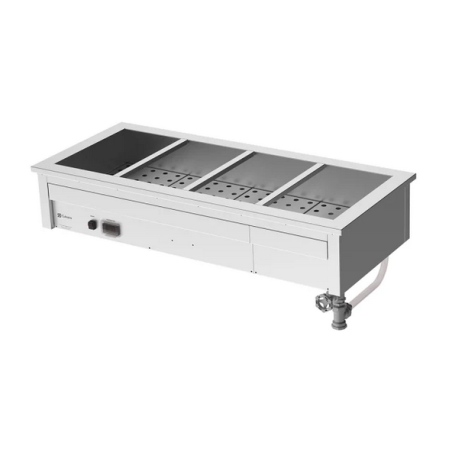

Culinaire Drop In Bain Marie CH.BM.D.4
Culinaire CH.BM.D.4 Bain Maries 4 Bay, Drop-in
About this product
The Culinaire® Drop-In Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.
Options: Radius well.
Includes pan dividers. It measures 1477 x 647 x 284 mm (W x D x H) and is rated at 3.0kW.
Key Benefits
- Hard-wearing stainless steel that's easy to keep clean
- Built-in safety cut-outs
- Insulated construction holds temperature and saves energy
- Backed by a 12-month parts and labour warranty
Key Features
- This unit is designed to be installed into a cut-out in a new or existing bench top
- Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
- Temperature regulation via digital control, designed to hold product between 65°C - 90°C.
- Air insulated, double skinned tank for energy efficient heating
- Robust 304 grade stainless steel construction
- Manual fi ll and manual empty, valve operated waste
- 1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BM.D.4 |
| Dimensions (W x D x H mm) | 1477 x 647 x 284 |
| Power | 3.0kW |
| Electrical | 1Ø + N + E |
| Range | Culinaire Heated Bain Maries |
| Description | 4 Bay, Drop-in |
| Includes | pan dividers |
| Cutout Dimensions (mm) | 1455 x 625 |
| Electrical Connection | 1Ø+N+E 240VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Modules | 4 |
| Placement | Drop-In |
| Warranty | 12-month parts and labour warranty |
Temperature regulation via digital control, designed to hold product between 65°C - 90°C. Product must be pre-heated above 65°C prior to display.
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pan dividers not supplied.
Additional accessories sold separately, and page 66.
Gantries sold separately to enable installation over the bain marie on a custom made stainless steel bench top.
MODEL: CH.BM.D.4
