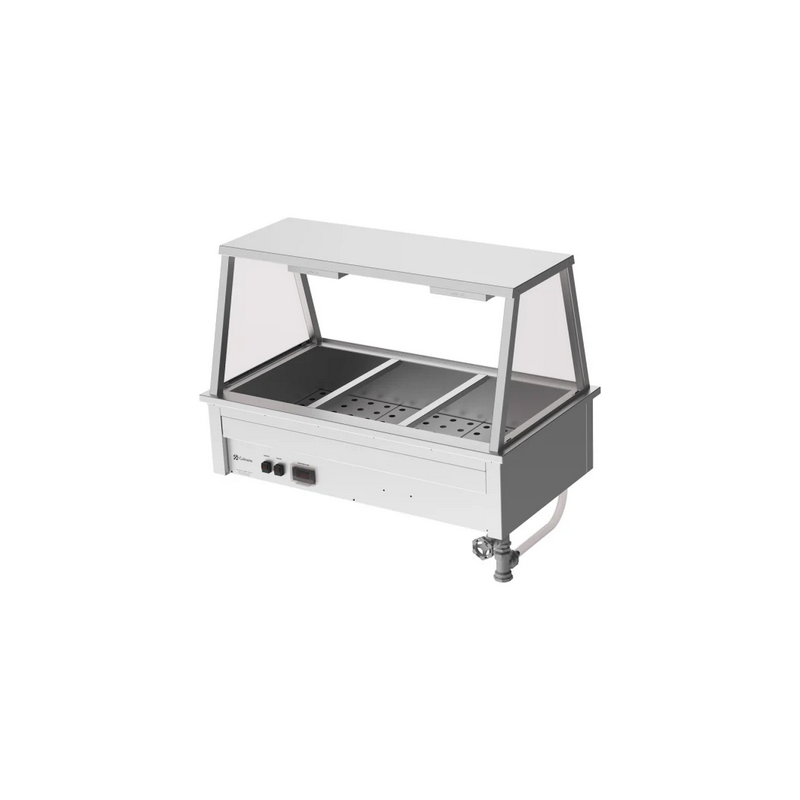

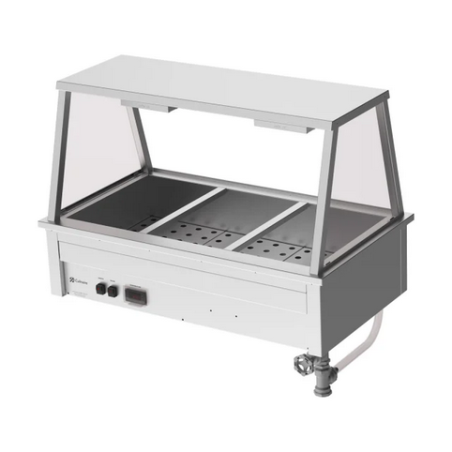

Culinaire Drop In Bain Marie with A Frame Gantry CH.BM.D.GA.3
Culinaire CH.BM.D.GA.3 Bain Maries 3 Bay, Drop-in with A-Frame Gantry
About this product
The Culinaire® Drop-In Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep. Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.
The bain marie is fitted with an A-frame gantry with infra-red heat lamps (Refer to CH.GA for details). Options: Front glass, sliding doors and sneeze guards (all sold separately), Radius well.
It measures 1137 x 647 x 760 mm (W x D x H) and is rated at 2.85kW.
Key Benefits
- Backed by a 12-month parts and labour warranty
Key Features
- 3 module unit
- Unit comes complete with CH.BM.U bain marie plus dropin bench top and A frame heated gantry fully fitted and wired. Gantry is welded to bench top
- This display is designed to be installed into a cut out in a new or existing bench top which allows for simple and inexpensive installation
- Overhead Quartz IR heat lamps provide heat and illumination to the product below
- A frame gantry comes with 6mm toughened glass ends
- Front glass sliding doors and sneeze guards can be either added as optional extras at the time of order and fitted in factory or ordered at a separate date for easy fitting by customer
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BM.D.GA.3 |
| Dimensions (W x D x H mm) | 1137 x 647 x 760 |
| Power | 2.85kW |
| Electrical | 1Ø + N + E |
| Range | Culinaire Heated Bain Maries |
| Description | 3 Bay, Drop-in with A-Frame Gantry |
| Cutout Dimensions (mm) | 1110 x 620 |
| Electrical Connection | 1Ø+N+E 240VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Optional extras | Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time); Temperature regulation via digital control, designed to hold product between 65°C - 90°C.; Independent controlls for baine marie, hot cupboard and gantry; A-frame gantry fi tted with Quartz IR heat lamps; Air insulated, double skinned tank for energy effi cient heating; Gantry constructed from 304 grade stainless steel with a No.4 fi nish and 6mm toughened glass end; Manual fi ll and manual empty, valve operated waste; 1/1 GN sized well, fi ts pans up to 150mm deep (sold separately). Supplied with pan dividers |
| Modules | 3 |
| Warranty | 12-month parts and labour warranty |
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers.
MODEL: CH.BM.D.GA.3
