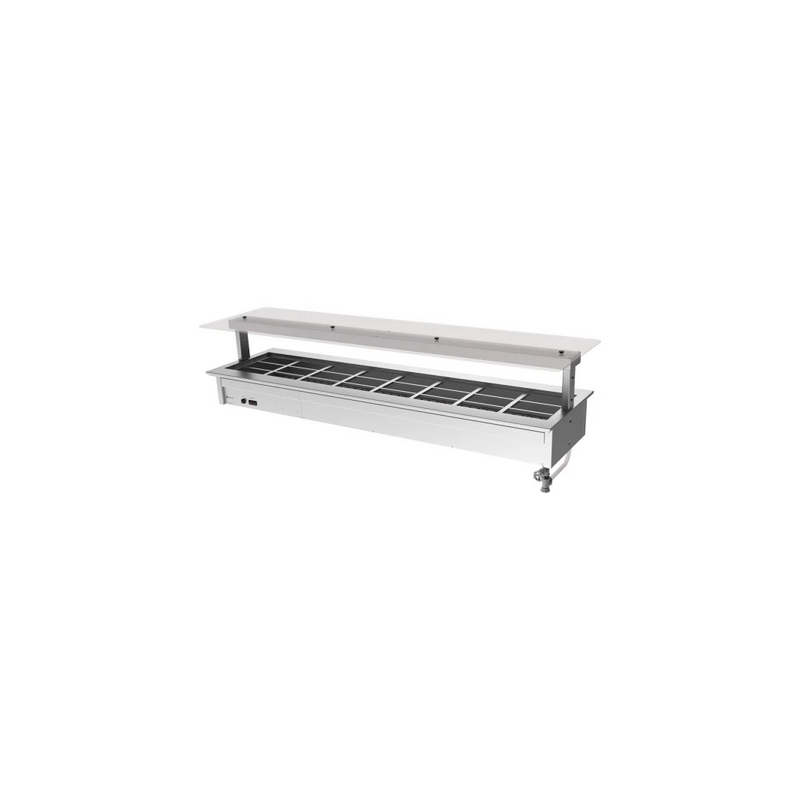

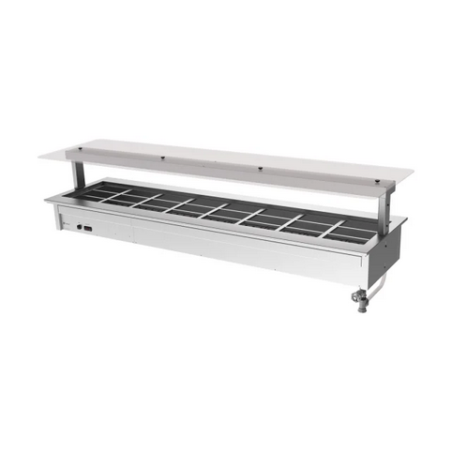

Culinaire Drop In Counter Line Bain Marie With Flat Glass Gantry - Stainless Steel Fixings CH.BMC.D.
Culinaire CH.BMC.D.GSF.8 Bain Maries 8 Bay, Drop-in
About this product
The Culinaire® Drop-In Counter Line Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.
The visual aspect of the unit is enhanced by the use of 10mm toughened glass on the gantry. Options: Radius well.
Flat glass gantry. It measures 2897 x 825 x 661 mm (W x D x H) and is rated at 7.8kW.
Key Benefits
- Hard-wearing stainless steel that's easy to keep clean
- Built-in safety cut-outs
- Insulated construction holds temperature and saves energy
- Backed by a 12-month parts and labour warranty
Key Features
- This display is designed to be installed into a cut-out in a new or existing bench top which allows for simple installation
- Pans are recessed to minimise water condensation on surrounding bench top
- Double skinned air insulated on all sides to minimise heat to external panels
- Robust construction from 304 grade stainless steel with a No.4 finish
- Adjustable digital temperature controller allows food to be held between +65°C to +90°C (food must be heated above 65°C before being placed in bain marie)
- Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
- Fitted with 10mm thick toughened glass gantry with overhead Quartz IR heat lamps to provide heat and illumination to the product below
- Individual On/Off switches to operate bain marie and overhead gantry heat lamps
- Overhead heat lamps are fully adjustable via a solid-state voltage controller for accurate temperature selection
- Water inlet at opposite end to drain for ease of cleaning
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BMC.D.GSF.8 |
| Dimensions (W x D x H mm) | 2897 x 825 x 661 |
| Power | 7.8kW |
| Electrical | 3Ø + N + E |
| Range | Culinaire Self Serve Food Displays Bain Maries |
| Description | 8 Bay, Drop-in |
| Cutout Dimensions | 2880 x 805 |
| Electrical Connection | 240V 3Ø + N + E |
| Water Connection | 15mm |
| Waste Connection | 50mm / CH.BMC.D.GSF.8 |
| Modules | 8 |
| Warranty | 12-month parts and labour warranty |
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pans are recessed to minimise water condensation on surrounding bench top.
Made to Order.
MODEL: CH.BMC.D.GSF.8
