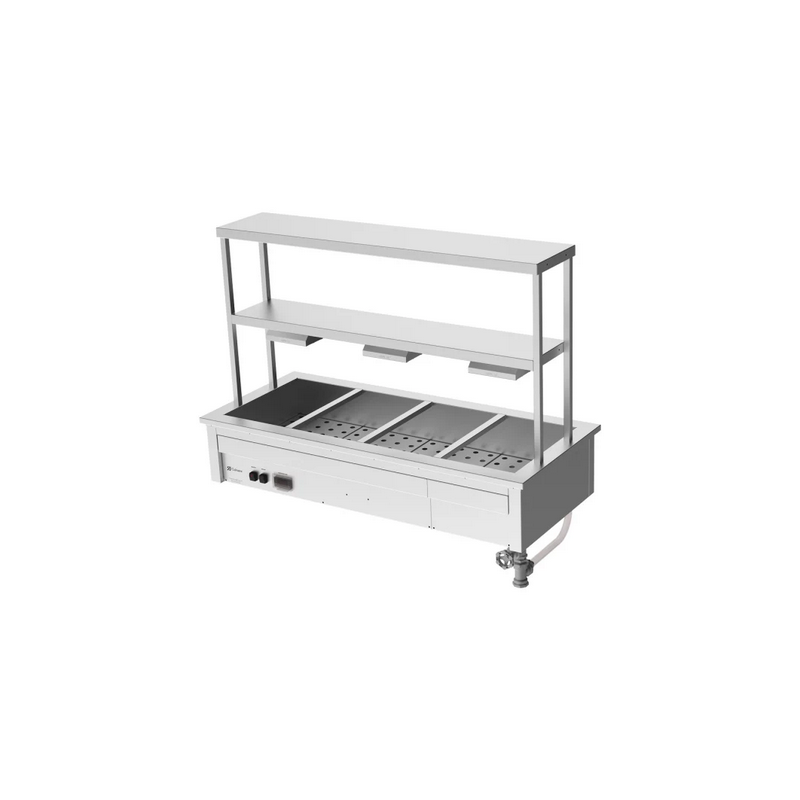

Culinaire Drop In Bain Marie with Double Gantry & Heat Lamps to Bottom Shelf CH.BM.D.GDB.3
Culinaire CH.BM.D.GDB.3 Bain Maries 3 Bay, Drop-in with 2-Tier Gantry
About this product
The Culinaire® Drop-In Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.
The bain marie is fitted with a double gantry with infra-red heat lamps to bottom shelf (Refer to CH.GDB for details). Options: Radius well.
Heat lamps to bottom shelf. It measures 1137 x 647 x 1034 mm (W x D x H) and is rated at 2.85kW.
Key Benefits
- Backed by a 12-month parts and labour warranty
Key Features
- 3 module unit
- Unit comes complete with CH.BM.U bain marie plus dropin bench top and double overhead heated gantry fully fitted and wired. Gantry is welded to bench top
- This display is designed to be installed into a cut out in a new or existing bench top which allows for simple and inexpensive installation
- Double overhead gantry comes with heat lamps to bottom level only
- Overhead Quartz IR heat lamps provide heat and illumination to the product below
- Overhead heat lamps are fully adjustable via a solidstate voltage controller for accurate temperature selection
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BM.D.GDB.3 |
| Dimensions (W x D x H mm) | 1137 x 647 x 1034 |
| Power | 2.85kW |
| Electrical | 1Ø + N + E |
| Range | Culinaire Heated Bain Maries |
| Description | 3 Bay, Drop-in with 2-Tier Gantry |
| Cutout Dimensions (mm) | 1115 x 625 |
| Electrical Connection | 1Ø+N+E 240VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Optional extras | Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time); Temperature regulation via digital control, designed to hold product between 65°C - 90°C.; Independent controlls for baine marie, hot cupboard and gantry; 2-Tier overhead gantry fitted with Quartz IR heat lamps on the underside of the bottom shelf; Air insulated, double skinned tank for energy efficient heating; Robust 304 grade stainless steel construction; Manual fi ll and manual empty, valve operated waste; 1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers |
| Modules | 3 |
| Warranty | 12-month parts and labour warranty |
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers.
Made to Order.
MODEL: CH.BM.D.GDB.3
