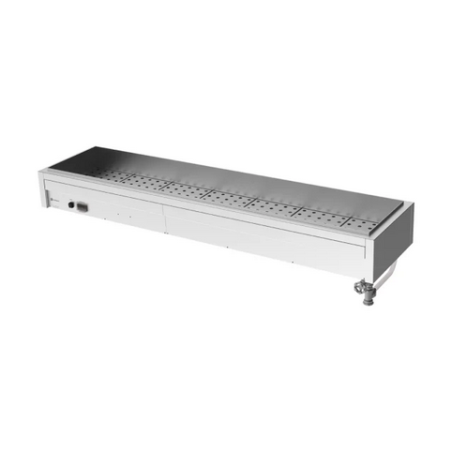

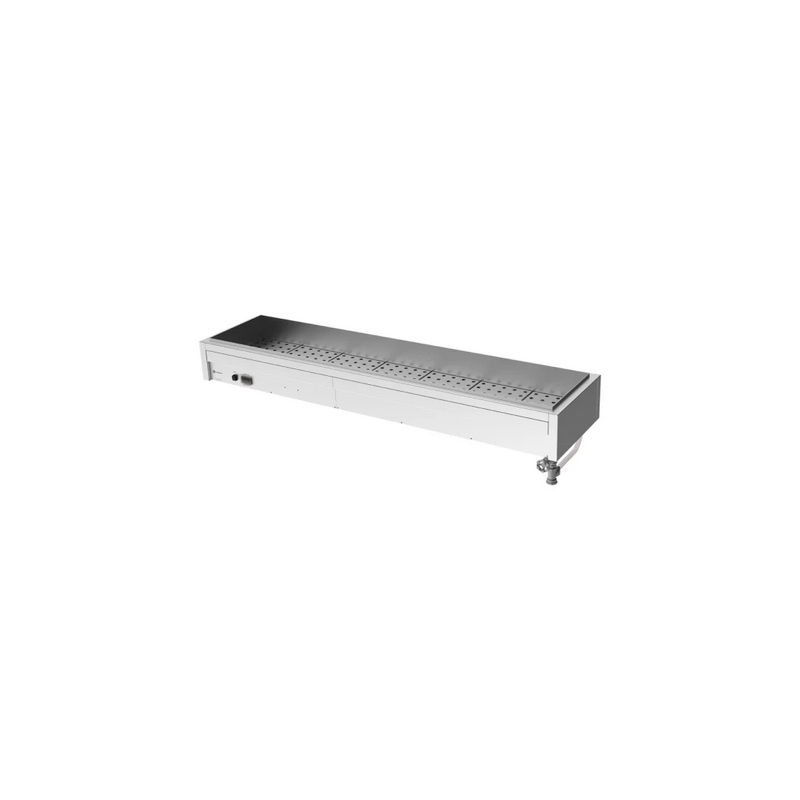

Culinaire Under Bench Bain Marie Without Bench Top or Pan Dividers CH.BM.U.7
Culinaire CH.BM.U.7 Bain Maries 7 Bay, Under Bench
About this product
The Culinaire® Under Bench Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.
Standard stainless steel tops and gantries are available to fit all models (Sold separately). Options: Radius well.
Pan dividers not included. It measures 2460 x 610 x 283 mm (W x D x H) and is rated at 5.25kW.
Key Benefits
- Hard-wearing stainless steel that's easy to keep clean
- Insulated construction holds temperature and saves energy
- Energy-efficient operation
- Backed by a 12-month parts and labour warranty
Key Features
- This unit is designed to be mounted under a custom made stainless steel bench (manufactured & fi tted by others)
- Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
- Temperature regulation via digital control, designed to hold product between 65°C - 90°C.
- Air insulated, double skinned tank for energy efficient heating
- Robust 304 grade stainless steel construction
- Manual fi ll and manual empty, valve operated waste
- 1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pan dividers not supplied
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BM.U.7 |
| Dimensions (W x D x H mm) | 2460 x 610 x 283 |
| Power | 5.25kW |
| Electrical | 3Ø + N + E |
| Range | Culinaire Heated Bain Maries |
| Description | 7 Bay, Under Bench |
| Electrical Connection | 3Ø+N+E 400VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Modules | 7 |
| Placement | Under Bench |
| Warranty | 12-month parts and labour warranty |
Temperature regulation via digital control, designed to hold product between 65°C - 90°C. Product must be pre-heated above 65°C prior to display.
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pan dividers not supplied.
Additional accessories sold separately, and page 66.
Gantries sold separately to enable installation over the bain marie on a custom made stainless steel bench top.
MODEL: CH.BM.U.7
