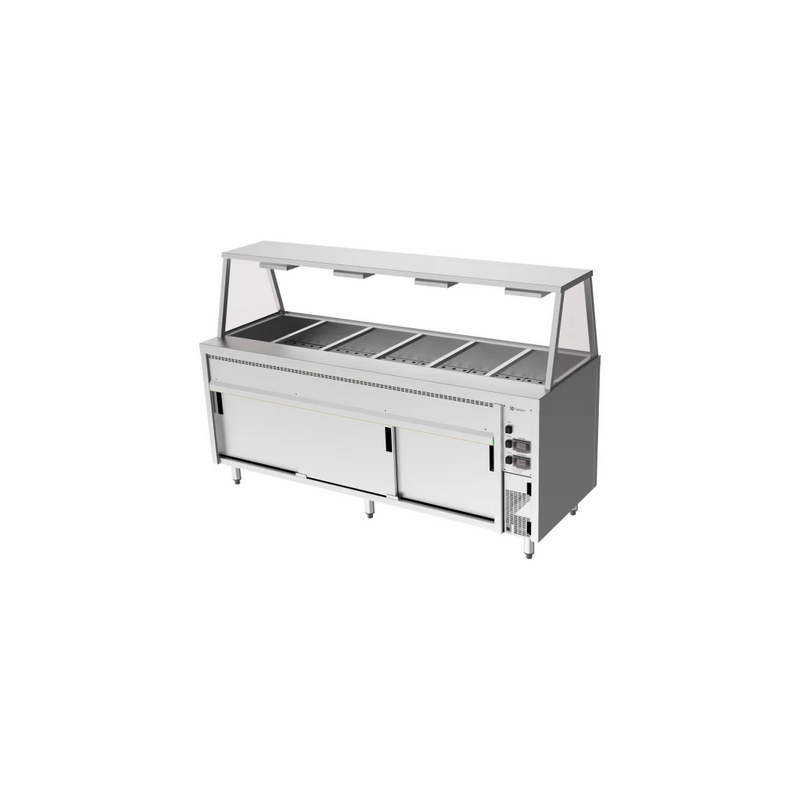

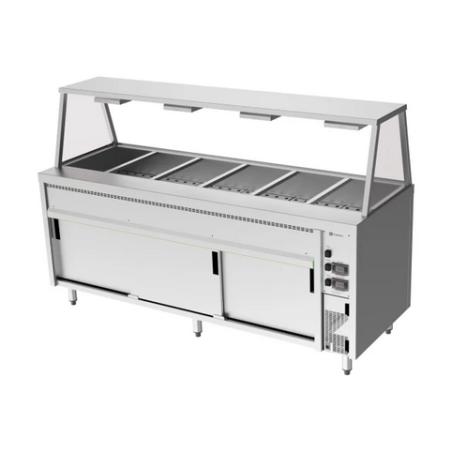

Culinaire Island Bain Marie with A Frame Gantry CH.BMH.I.GA.6
Culinaire CH.BMH.I.GA.6 Bain Marie Hot Cupboards 6 Bay, Island with A-Frame Gantry
About this product
The Culinaire® Island Bain Marie Hot Cupboard features a high powered heavy duty Bain Marie that is designed to hold hot food at the optimum temperature in GN pans up to 150mm deep (sold separately). Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The hot cupboard features a fan forced heating system, which offers energy saving efficiency, faster heat-up times and even heat distribution.
Ready for connection to hot water inlet and waste with all valves supplied and fitted. The bain marie hot cupboard is fitted with an A-frame gantry with infra-red heat lamps (Refer to CH.GA for details). Options: Front glass, sliding doors, sneeze guards (all sold separately) and lift up, fold down work shelf (factory fitted), Left hand controls, Radius Well.
It measures 2123 x 753 x 1375 mm (W x D x H) and is rated at 7.9kW.
Key Benefits
- Hard-wearing stainless steel that's easy to keep clean
- Insulated construction holds temperature and saves energy
- Energy-efficient operation
- Backed by a 12-month parts and labour warranty
Key Features
- Unit comes complete with baine marie, hotcupboard, and A-Frame 304 stainless steel gantry. (Gantry welded to bench top)
- Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
- Temperature regulation via digital control, designed to hold product between 65°C - 90°C.
- Independent controlls for baine marie, hot cupboard and gantry
- A-Frame gantry fitted with Quartz IR heat lamps
- Air insulated, double skinned tank for energy efficient heating
- Hot cupboard equioped with a fan forced heating system
- Top mounted easy glide doors that do not sit in a bottom track, eliminates dirt trap. 1/1GN shelf configuration (1 shelf per door)
- Robust 304 grade stainless steel construction
- Manual fill and manual empty, valve operated waste
Specifications
| Brand | Culinaire |
|---|---|
| Model | CH.BMH.I.GA.6 |
| Dimensions (W x D x H mm) | 2123 x 753 x 1375 |
| Power | 7.9kW |
| Electrical | 3Ø + N + E |
| Range | Culinaire Heated Bain Marie Hot Cupboards |
| Description | 6 Bay, Island with A-Frame Gantry |
| Electrical Connection | 3Ø+N+E 400VAC / 50Hz / (Onsite connection) |
| Water Connection | G 1/2” BSP |
| Manufacturer's Warranty | 12 Months |
| Modules | 6 |
1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pan dividers not supplied.
Stainless steel work shelf mounted onto fold down brackets. This item is factory fitted and must be selected at time of order.
MODEL: CH.BMH.I.GA.6
