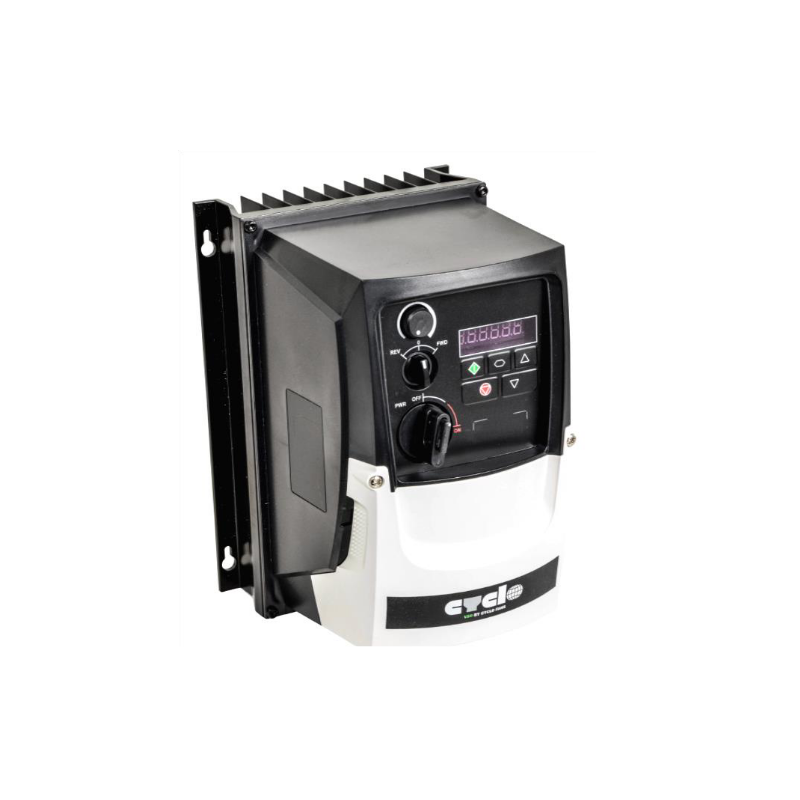

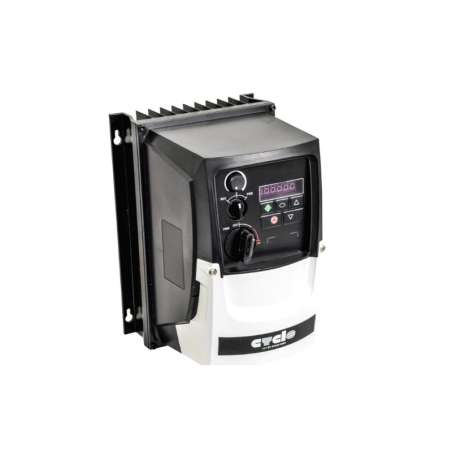

Cyclo CVSD-075-11 - Single Phase Variable Motor Speed Controller

• Built to conquer harsh environments:
• This IP66-rated VSD is the ultimate choice for applications exposed to water and oil.
• Ideal for demanding commercial kitchens.
• Uncompromising reliability:
• With a robust enclosure and advanced protection features, this VSD ensures smooth operation even in the toughest conditions.
• Seamless control:
•  Enjoy precise variable speed control for your fan motors, optimizing energy consumption and process efficiency.

Cyclo VSD - Single Phase Motor Datasheet
Input Ratings
Supply Voltage 200 - 240V
Input Phases 1
Supply Current Continuous 9.3 Amps
Supply Fuse or MCB (Type B) 16 Amps
Output Ratings
Motor Output Rating 0.75 kW
Output Voltage 0 â Supply Voltage
Output Current 7 Amps
Cable Information
Max Supply Cable Size 8 mm
Max Motor Cable Size 8 mm
Max motor cable length 100 m
Model: CVSD-075-11
Enclosure: IP66 switched with potentiometer
Dimensions
Size 1
Height 232 mm
Width 161 mm
Depth 179 mm
Weight 3.1 Kg
Fixings 4 x M4
