Commercial Restaurant Canopy Fan -21" Vertical Model Fan
Speed : 4-Pole (1400 RPM)
Commercial Kitchen Canopy Motor

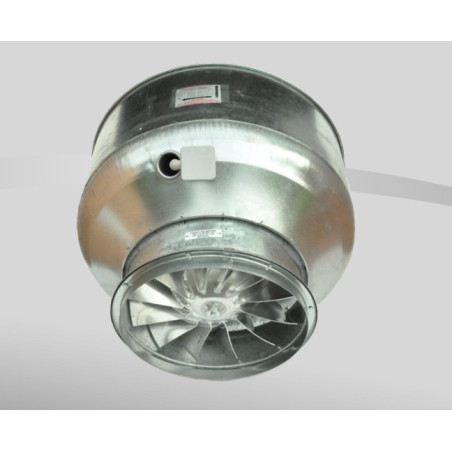

21" Vertical Exhaust Canopy Motor, Three Phase, 415V, 1.5 KW, 2 HP, Model: V53-154-3P
| Description | Commercial Vertical Exhaust Fan |
| Model | V53-154-3P |
| Int. Flange Dia | 530 mm |
| Fixing | Vertical, Roof Mounted |
| Features | High performing, robust and light weight Locally owned and manufactured in Melbourne (Australia) since 1947 EPA Compliant, Australian & NZ Standards Compliant |
| Impeller | Each impeller is individually designed and manufactured to precise specifications for maximum airflow at high pressure Hand crafted and balanced Aluminium alloy Mixed flow type impellers (axial flow and centrifugal design) |
| Enclosure | Galvanized steel casing and waste resistant motor enclosures Motor mounted outside airstream Supplied with associated flanges |
| Motor | Typical CMG, Typical WEG, Fan Speed : 4-Pole (1400 RPM) |
| Phase(s) | Three Phase, 415V, 1.5 KW, 2 HP, 3.2 Amps |
| Custom Motors | Hazard Area Motors – Ex ‘d’ Flame, Ex ‘e’ Increased Safety, Ex ‘n’ Non-Sparking, Dust Ignition Proof, Bush Fire Code Compliant |
| Circuit Breaker | Separate Current rated circuit breaker (IEC/EN 60947 approved) must be installed between the motor and building power supply. Circuit breaker overload should be set to suit motor’s amp draw. |
| Control Option(s) | 5A Variable Speed Switch (N/A) 2 Speed Switch (Available) Cyclo VSD (Available) (Plug ins available: Temperature sensor, CO2 sensor, Airflow / Pressure sensor, Smoke sensor) |
| Weight | 70 – 90kg |
| Installation | Fan Unit: Roof Plumber, Canopy Maintenance / Installer Electrical Connections: Licensed electrician |
| Transport | Top load only Ensure impeller has not been exposed to wet weather, any water inside the motor housing can damage the motor. |
Typical Industries & Applications :
Hospitality | Commercial Kitchens, Food Trucks, Mobile Food Containers
Manufacturing | Welding, Powder Coating, Spray Painting, Glue Works, Fibre Glassing
Warehousing / Office | Ablution Block, Heat Extraction
Extraction of Heat, Toxic Gas and Hazardous Gas options
