Culinaire CH.BM.D.GDD.3 Bain Maries 3 Bay, Drop-in with 2-Tier Gantry
search
  • Culinaire CH.BM.D.GDD.3 Bain Maries 3 Bay, Drop-in with 2-Tier Gantry

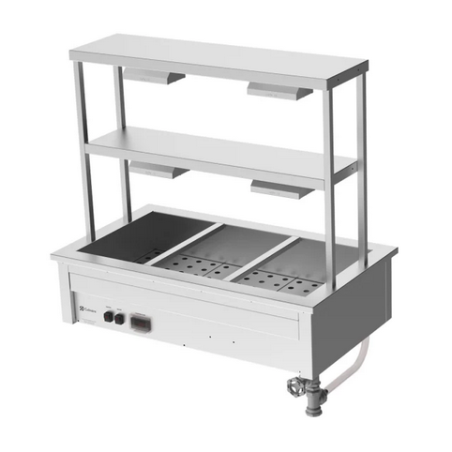

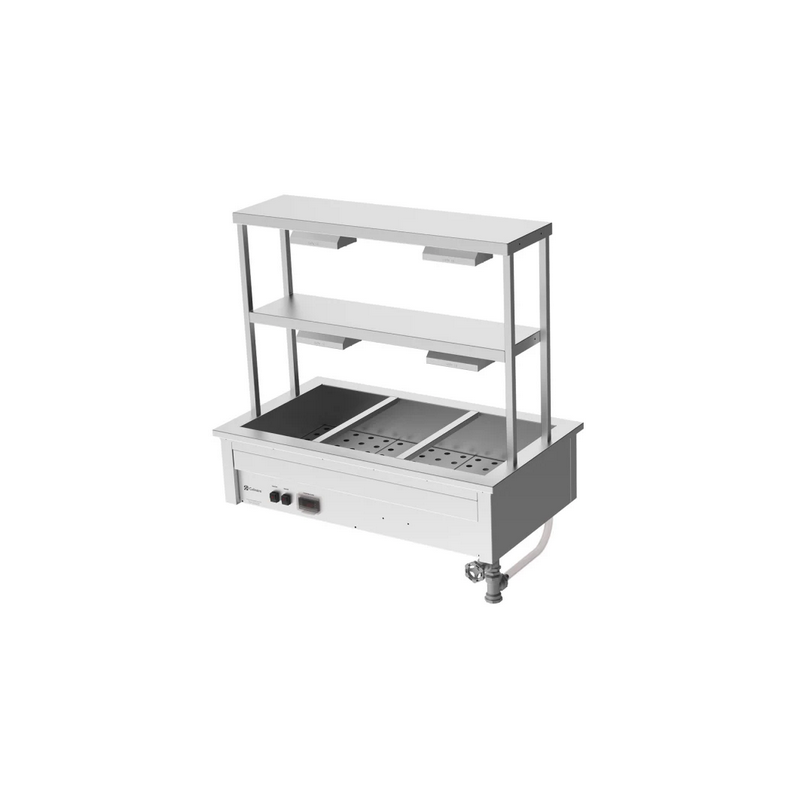

Culinaire Drop In Bain Marie with Double Gantry & Heat Lamps to Bottom & Top Shelves CH.BM.D.GDD.3

Culinaire CH.BM.D.GDD.3 Bain Maries 3 Bay, Drop-in with 2-Tier Gantry

About this product

The Culinaire® Drop-In Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep. Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.

The bain marie is fitted with a double gantry with infra-red heat lamps to top and bottom shelves (Refer to CH.GDD for details). Options: Radius well.

Heat lamps to both shelves. It measures 1137 x 647 x 1034 mm (W x D x H) and is rated at 3.45kW.

Key Benefits

  • Backed by a 12-month parts and labour warranty

Key Features

  • 3 module unit
  • Unit comes complete with CH.BM.U bain marie plus drop­in bench top and double overhead heated gantry fully fitted and wired. Gantry is welded to bench top
  • This display is designed to be installed into a cut out in a new or existing bench top which allows for simple and inexpensive installation
  • Double overhead gantry comes with heat lamps to top and bottom levels
  • Overhead Quartz IR heat lamps provide heat and illumination to the product below
  • Overhead heat lamps are fully adjustable via a solid­state voltage controller for accurate temperature selection

Specifications

BrandCulinaire
ModelCH.BM.D.GDD.3
Dimensions (W x D x H mm)1137 x 647 x 1034
Power3.45kW
Electrical1Ø + N + E
RangeCulinaire Heated Bain Maries
Description3 Bay, Drop-in with 2-Tier Gantry
Cutout Dimensions (mm)1115 x 625
Electrical Connection1Ø+N+E 240VAC / 50Hz / (Onsite connection)
Water ConnectionG 1/2” BSP
Optional extrasWet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time); Temperature regulation via digital control, designed to hold product between 65°C - 90°C.; Independent controlls for baine marie, hot cupboard and gantry; 2-Tier overhead gantry fitted with Quartz IR heat lamps on the underside of the both shelves; Air insulated, double skinned tank for energy efficient heating; Robust 304 grade stainless steel construction; Manual fi ll and manual empty, valve operated waste; 1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers
Modules3
Warranty12-month parts and labour warranty

1/1 GN sized well, fits pans up to 150mm deep (sold separately). Supplied with pan dividers.

Made to Order.

Download data sheet (PDF)

MODEL: CH.BM.D.GDD.3

Culinaire CH.BM.D.GDD.3 Bain Maries 3 Bay, Drop-in with 2-Tier Gantry
