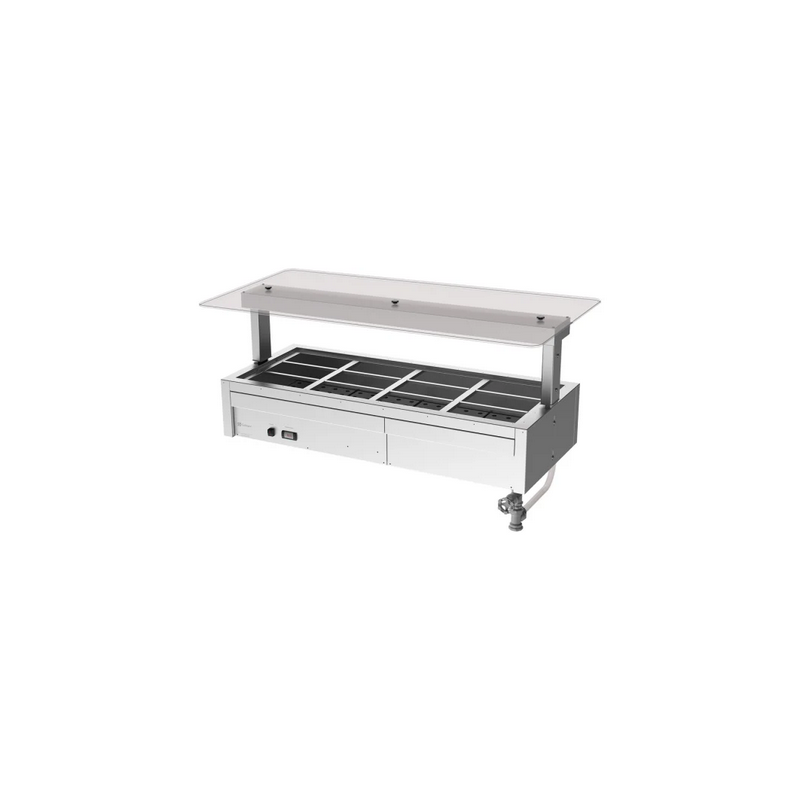

Culinaire CH.BMC.U.GSF.4 Bain Maries 4 Bay, Under Bench
search
  • Culinaire CH.BMC.U.GSF.4 Bain Maries 4 Bay, Under Bench

Culinaire Under Bench Counter Line Bain Marie With Flat Glass Gantry - Stainless Steel Fixings CH.BM

Culinaire CH.BMC.U.GSF.4 Bain Maries 4 Bay, Under Bench

About this product

The Culinaire® Under Bench Counter Line Bain Marie is designed to hold pre-heated food at the optimum temperature in Gastronorm pans up to 150mm deep. Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time). The Bain Marie comes ready for connection to hot water and waste with all valves supplied and fitted.

The visual aspect of the unit is enhanced by the use of 10mm toughened glass on the gantry. Options: Radius well.

Flat glass gantry. It measures 1543 x 691 x 661 mm (W x D x H) and is rated at 3.9kW.

Key Benefits

  • Hard-wearing stainless steel that's easy to keep clean
  • Insulated construction holds temperature and saves energy
  • Adjustable feet for a level, comfortable working height
  • Backed by a 12-month parts and labour warranty

Key Features

  • This display is designed to be mounted under a custom made bench top of your choice (manufactured & fitted by others)
  • Pans are recessed to minimise water condensation on surrounding bench top
  • Double skinned air insulated on all sides to minimise heat to external panels
  • Robust construction from 304 grade stainless steel with a No.4 finish
  • Adjustable digital temperature controller allows food to be held between +65°C to +90°C (food must be heated above 65°C before being placed in bain marie)
  • Wet or dry operation (temperature varies greatly when run dry, should not be left unattended for long periods of time)
  • Fitted with 10mm thick toughened glass gantry with overhead Quartz IR heat lamps to provide heat and illumination to the product below
  • Gantry is detachable and height adjustable for ease of installation. To be connected by an electrician
  • Individual On/Off switches to operate bain marie and overhead gantry heat lamps
  • Overhead heat lamps are fully adjustable via a solid-state voltage controller for accurate temperature selection

Specifications

BrandCulinaire
ModelCH.BMC.U.GSF.4
Dimensions (W x D x H mm)1543 x 691 x 661
Power3.9kW
Electrical1Ø + N + E
RangeCulinaire Self Serve Food Displays Bain Maries
Description4 Bay, Under Bench
Cutout Dimensions1395 x 545
Electrical Connection240V 1Ø + N + E
Water Connection15mm
Waste Connection50mm / CH.BMC.U.GSF.4
Modules4
Warranty12-month parts and labour warranty

1/1 GN sized well, fits pans up to 150mm deep (sold separately). Pans are recessed to minimise water condensation on surrounding bench top.

Made to Order.

Download data sheet (PDF)

Download user manual (PDF)

MODEL: CH.BMC.U.GSF.4

Culinaire CH.BMC.U.GSF.4 Bain Maries 4 Bay, Under Bench

7277

RRP

$9,040.00 $9,944.00 EX GST GST included
Save 15%

OUR PRICE

$7,684.00 $8,452.40
EX GST GST included Non stock item- Lead times may apply

☎Found a Better Price? We'll Match or Beat It

- Call Us Now! 1300 000 532

Rent-Try-Buy™ from just $15.33/day

New
Quantity
Lead time may apply. Call us for Lead Time.
