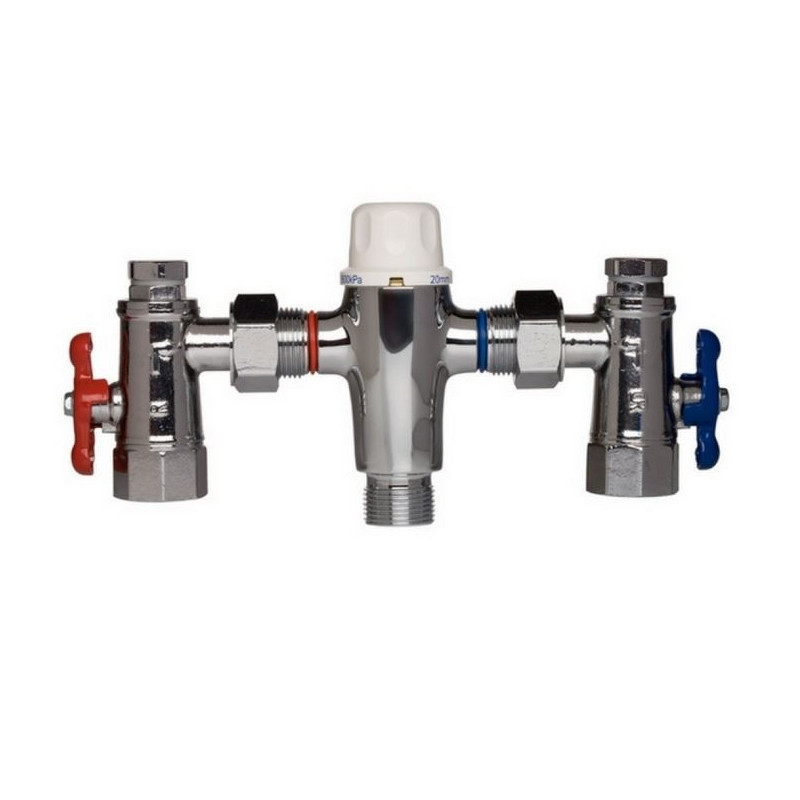

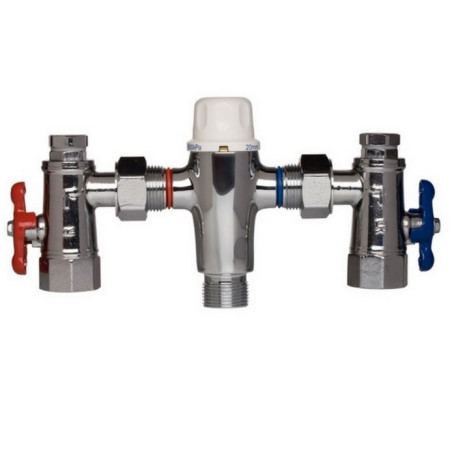

Jetstream JET6000 Thermostatic Mixing Valve 15/20mm

Product Description

Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply failure

Highly responsive mixed temperature control (+/- 2 Degrees Celsius) under changing inlet temperature and pressure conditions

Delivers excellent flow, operating at a minimum pressure of 20kPa

Supplied complete with isolating valves, non-returns and dual stage strainers incorporating temperature/pressure test ports

Flexible installation - inlet and outlet connections may be rotated to suit pipework design

* Temperature Adjustment Range 35 to 50C

* Dynamic Inlet Pressures 20 kPa Min - 500 kPa Max

* Static Inlet Pressure 1600 kPa Max

* Flow Rates 35 lpm @ 300 kPa pressure loss

* Minimum Flow Rate for stable outlet temperature 4 litres/min
