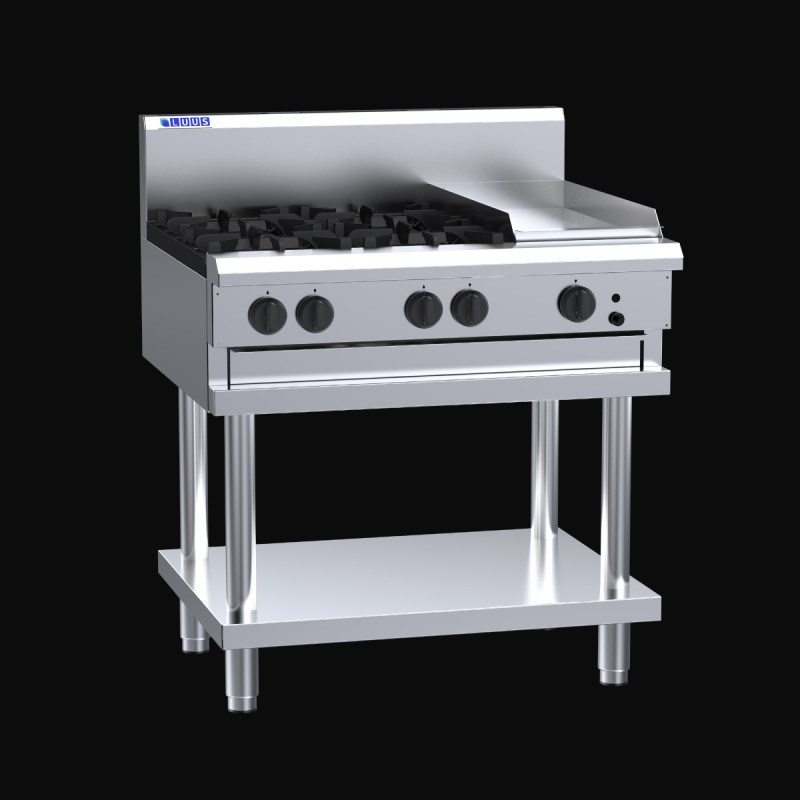

4 Burner 300mm Griddle Cooktop with flame failure, legs & shelf
Engineered to higher specifications, the CS-4B3P unit is a 900mm wide, compact high performance four burner cooktop with 300mm griddle. Available as a benchtop or freestanding with an undershelf storage area.
Open Burners
Nickel plated cast iron 28 mj dual-flame ring burners
Flame failure device standard (pilots optional extra)
Variable flame control valve with low flame setting
Heavy duty cast iron trivets
Pressed 0.7mm 304 stainless steel spillage bowls Griddle/Hotplate
18 mj burners with pilot, FFD and piezo ignition
Variable flame control valve with low flame setting
21mm thick mild steel griddle plate
Top weld sealed hotplate sections
CS-4B3P plate: 290mm x 540mm; 0.16m2 cooking area
2mm 304 stainless steel splash guards Overall Construction
Heavy duty construction
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Stainless steel legs with 55mm height adjustment range
Secondary catchment tray 0.9mm stainless steel Cleaning & Servicing
Removable burner hoods and spillage bowls
Secondary undertray to catch any additonal waste
Easy access to all parts & components from front Options/Accessories
Rear castors
Pilots to open burners
300mm drop on plate (6mm mild steel) for open burners
Ribbed or chrome finish on hotplates
RH and LH side shields
Ceramic rocks (specify when ordering)
Benchtop mount (specify when ordering)
